If you're putting an LS into a BMW E36, the headers are one of the parts you can't cheap out on. Clearance is tight, swap mount compatibility matters, and a header that hangs too low turns every speed bump into a problem. The ISR Performance HGC LS Swap Headers are built specifically for this swap, designed to pair with ISR's own LS swap mounts and Y-pipe, and engineered with high ground clearance as the priority.
What It Is

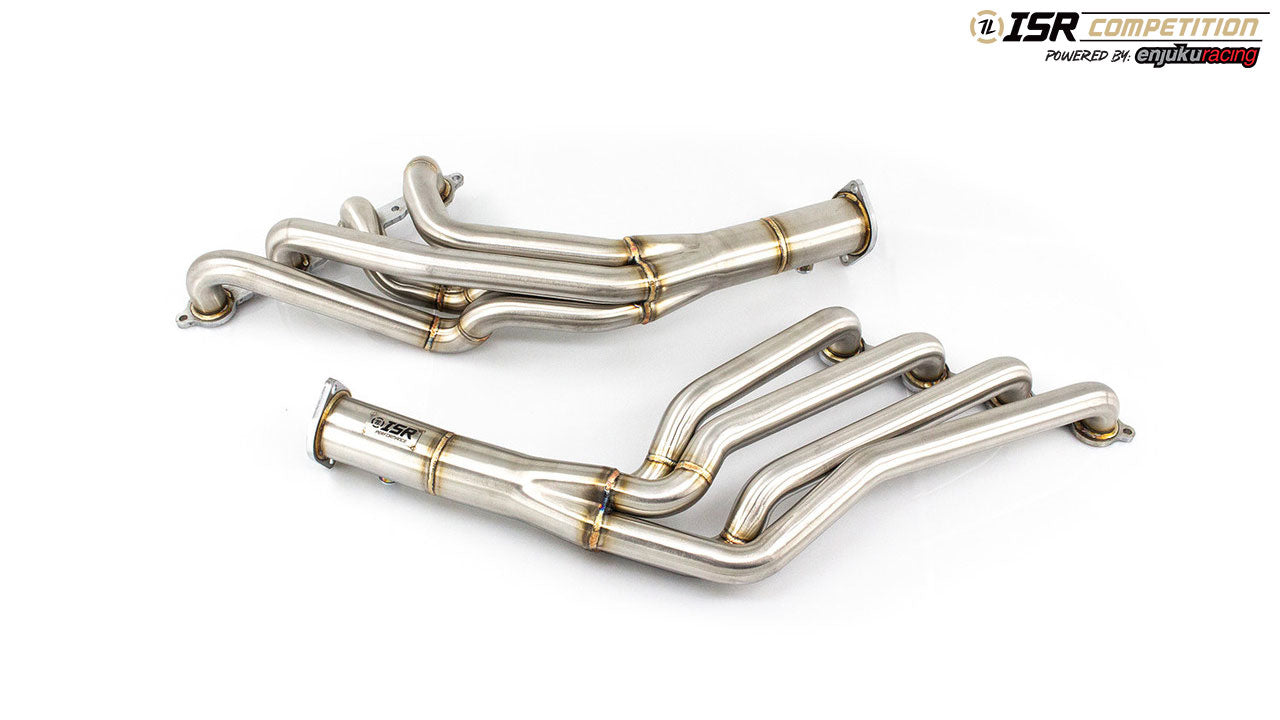

The ISR Performance HGC LS Swap Headers are a pair of long tube headers built specifically for LS engines swapped into the BMW E36 chassis. They are constructed from high-quality 304 stainless steel with 1 3/4 inch primary tubing. The "HGC" in the name stands for High Ground Clearance, referring to the routing that keeps the headers tucked up higher than typical long tube designs. These headers are part of ISR's complete E36 LS swap ecosystem and are engineered to bolt up cleanly with the matching ISR LS swap mounts and E36 LS Y-pipe.
What It Does
LS swaps into the E36 chassis are space-constrained. The factory exhaust manifolds on most LS engines don't fit cleanly in an E36 engine bay, and most aftermarket headers were built for trucks, GM platforms, or Fox bodies, not BMW chassis. The ISR HGC headers solve the fitment problem with E36-specific routing while delivering the flow capacity needed for higher horsepower LS builds. The 1 3/4 inch primary diameter supports strong top-end power without being so large that it kills low-end response on street-driven swaps.
The High Ground Clearance design is the standout feature. Traditional long tube headers hang low under the chassis, which is a problem on a platform that's often lowered. The HGC routing keeps the headers tucked higher so the car can still clear driveways, speed bumps, and track curbing without dragging metal.
Construction Quality
The HGC LS Swap Headers are built from 304 stainless steel, which is the right material for a header that's going to see repeated heat cycling and corrosive exhaust gases. 304 stainless handles the temperatures, resists corrosion, and holds up significantly better than mild steel or coated alternatives over the long term. The 1 3/4 inch primary diameter is well-matched to the displacement and power range of most LS engines used in E36 swaps.
Designed as a System
These headers are engineered to work as part of ISR's complete E36 LS swap product line. For proper fitment and a clean install, they pair with:
- ISR LS Swap Mounts (IS-E36-LSMB) for proper engine positioning in the E36 chassis
- ISR E36 LS Y-Pipe (IS-E36LS-Y) which bolts directly to the header collectors and connects to any ISR E36 rear exhaust section
- ISR Slim Steering Shaft (IS-UJSS-BMW) which is required for proper header clearance against the steering column
Using these headers with mismatched swap mounts or a non-ISR Y-pipe is not supported and may result in fitment issues. The system was designed to work together.
Fitment and Compatibility
These headers are designed specifically for LS-swapped BMW E36 chassis cars. Multiple critical fitment notes apply.
Chassis testing limitations: Fitment has only been confirmed on LHD USDM 6-cylinder E36 chassis. ISR cannot confirm fitment on European chassis or on 4-cylinder E36 variants. If you have a non-USDM or 4-cylinder car, verify clearance before purchasing or contact ISR directly.
ABS pump relocation or delete required: The OEM ABS pump location interferes with proper header fitment. You will need to either relocate the ABS pump to an alternate location or delete it entirely. This is a hard requirement, not optional.
Slim steering shaft required: The ISR slim steering shaft (IS-UJSS-BMW) is required for proper clearance between the header primaries and the steering column. Standard E36 steering shafts will not work with these headers.
LS3 knock sensor relocation: If you are running an LS3 with the OEM knock sensors in their factory placement, you will need to relocate the knock sensors to an alternate mounting boss. The primaries will not clear the OEM knock sensor position on LS3 engines.
Who This Is For
These headers fit one specific build profile: an LS swap into a BMW E36. If you're putting an LS1, LS2, LS3, or other LS-family engine into an E36 and you want headers built specifically for the application instead of trying to make truck or Fox body headers work, this is the part. If you're building the swap around ISR's swap mounts and Y-pipe, these are the headers the rest of the system was designed around. If you're running a higher horsepower LS build and need primaries that can support real power, the 1 3/4 inch tubing and 304 stainless construction are rated for it.
These are not the right headers if you're using a non-ISR swap mount kit, if you have a European-spec or 4-cylinder E36, or if you're not prepared to relocate or delete the ABS pump.
What's in the Box
- 1x Driver side header
- 1x Passenger side header
- 2x Header to head exhaust gaskets
- 2x 2-bolt 3.0 inch exhaust gaskets
Installation Notes
Professional installation is strongly recommended. LS swap header installation on the E36 is part of a larger swap project that requires engine removal or significant subframe work, ABS pump relocation or deletion, slim steering shaft installation, and on LS3 builds, knock sensor relocation. This is not a bolt-on upgrade for an already-running LS-swapped E36 unless the swap was built around the ISR ecosystem from the start. Verify clearance at all contact points before final tightening, especially around the steering shaft and chassis frame rails.
Off-Road and Competition Use
This header is legal only for use in competition vehicles which may never be registered, licensed, or used on public streets or highways, and for use in other exempted vehicles. It is not 50-state street legal. Verify local emissions and noise regulations before purchasing if you intend to drive the vehicle on public roads.
Product Details
Brand: ISR Performance
Product: HGC LS Swap Header
Part Number: IS-SSHD-E36LS
Vehicle Fitment: BMW E36 (LHD USDM 6-cylinder chassis confirmed)
Engine Compatibility: GM LS family (LS1, LS2, LS3, etc.)
Type: Long tube swap header with High Ground Clearance (HGC) design
Material: 304 stainless steel
Primary Diameter: 1 3/4 inch
Collector Flange: 2-bolt 3.0 inch
Chassis Testing: Confirmed on LHD USDM 6-cylinder E36 only (European and 4-cylinder fitment not confirmed)
Required Companion Parts: ISR LS Swap Mounts (IS-E36-LSMB), ISR E36 LS Y-Pipe (IS-E36LS-Y), ISR Slim Steering Shaft (IS-UJSS-BMW)
Required Modifications: OEM ABS pump must be relocated or deleted; LS3 knock sensors must be relocated if running OEM placement
Quantity: Sold as a pair (driver and passenger)
Legality: Off-road and competition use only, not 50-state street legal
Key Benefits: Purpose-built for E36 LS swaps, high ground clearance routing, 304 stainless construction, designed as part of complete ISR E36 LS swap system, supports higher horsepower applications
