ISR Performance Aluminum Radiator - Nissan 240sx S13 89-94 SR20DET

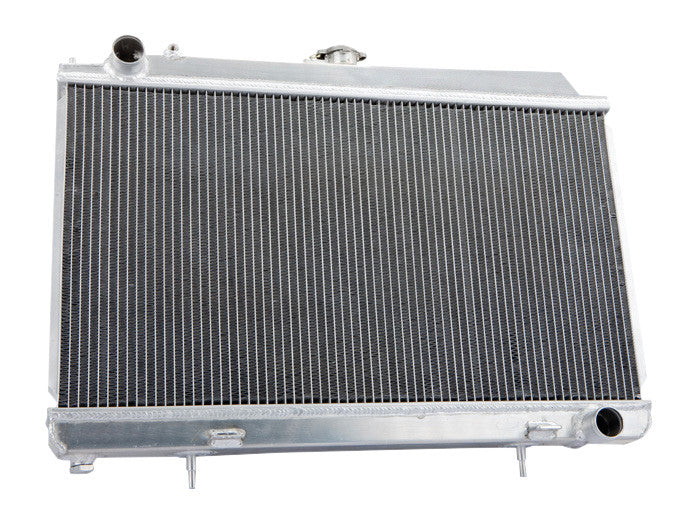

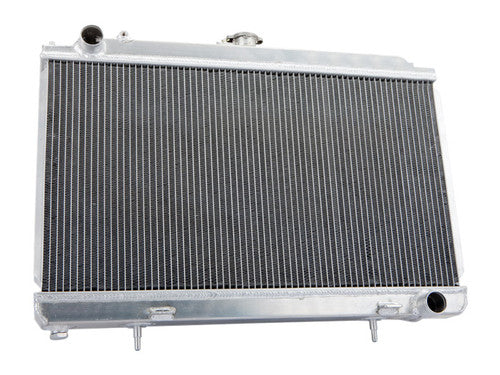

The ISR Performance Aluminum Radiator is a TIG welded lightweight aluminum performance radiator for the 1989-1994 Nissan 240SX (S13) with SR20DET swap. Direct drop-in upgrade with hose fittings positioned for SR20DET swap routing in the S13 chassis. A cost-effective alternative to premium aluminum radiator brands while delivering comparable cooling performance.

What It Does

The factory S13 radiator was sized for a naturally-aspirated KA24, not a turbocharged SR20DET pushing significantly more heat into the cooling system. As SR20DET swaps make more power and see harder use, the factory radiator becomes a real cooling bottleneck. This aluminum radiator handles the increased heat load on a built SR20DET while staying within a sensible budget.

TIG welded aluminum construction throughout, with a direct drop-in fit on the S13 chassis when running an SR20DET swap. Comparable in size and cooling capacity to premium options like Koyo at a significantly lower price.

Critical Fitment Note

This radiator is built for the S13 chassis with an SR20DET engine. The hose fitting positions are sized for SR20DET swap routing, which differs from the factory KA24 layout. For factory KA24DE S13 builds, use the KA24-specific S13 radiator (IS-240KA-RADS13).

Recommended Install Timing

The ideal time to install this radiator is during the SR20DET swap itself, while the front of the car is already apart. Adding it later after the swap is finished works, but means you're tearing the front back down for a cooling upgrade that's much easier to do up front.

Fitment

• 1989-1994 Nissan 240SX (S13) with SR20DET swap

Best Paired With a Fan Shroud Kit

For the best cooling results, pair this radiator with an aftermarket dual electric fan shroud kit sized to match the radiator.

What's in the Box

• 1x ISR Performance aluminum radiator (S13 SR20DET fitment)

Product Details

Brand: ISR Performance

Part Number: IS-240SR-RADS13

Type: Performance Aluminum Radiator

Vehicle Fitment: 1989-1994 Nissan 240SX (S13) with SR20DET swap

Engine Restriction: SR20DET hose routing - use IS-240KA-RADS13 for factory KA24DE

Material: TIG welded aluminum

Comparable To: Koyo and similar premium aluminum radiators

Installation: Direct drop-in upgrade

Application: Daily-driven SR20DET-swapped S13 through track and competition use

Recommended Pairing: Dual electric fan shroud kit

Sold: Individually

Legality: Off-road and competition use only
