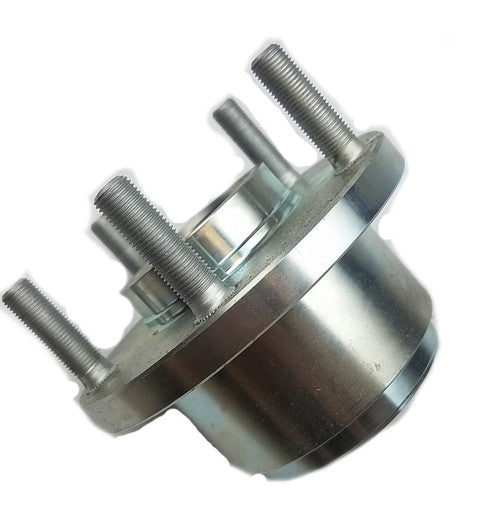

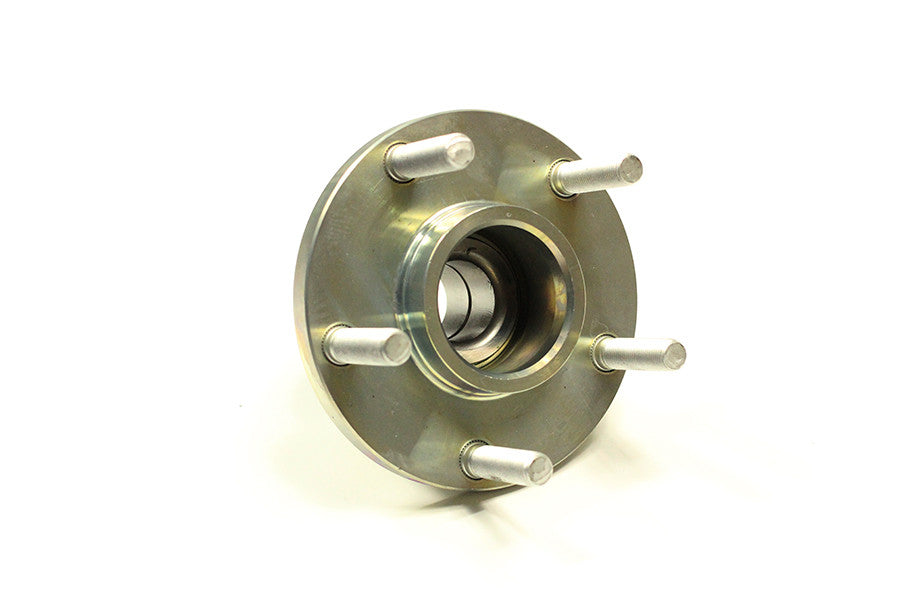

ISR Performance 5 Lug Hub Conversion - Nissan 240sx 89-94 S13 Front Individual

The ISR Performance 5 Lug Hub Conversion Front Hub is a direct-replacement single front hub that converts a 4-lug Nissan 240SX S13 to the standard Nissan 5x114.3 lug pattern. No spindle modifications, no ball joint changes, no fabrication. Just remove the factory 4-lug hub and bolt in the ISR 5-lug replacement.

What It Does

The factory S13 240SX runs a 4x114.3 lug pattern, which severely limits wheel selection in modern aftermarket offerings. Most quality drift, track, and performance wheels are made in 5x114.3. The ISR 5-lug conversion hub replaces the factory front hub with a 5x114.3 unit using M12 x 1.25 studs, opening up the entire 5-lug wheel market. This is the most common chassis modification on built S13 builds.

Fitment

• Nissan 240SX 1989-1994 (S13) front

This is a single front hub. Two hubs are required to complete the front conversion (one for each side).

Hub Features

• Bearing pre-installed
• Lightweight design
• Standard wheel studs pre-mounted
• Compatible with slotted rotors and spacers
• 66mm bore
• 14.35mm knurl
• Plug-and-play installation, no modifications required

Product Details

Brand: ISR Performance

Part Number: IS-5LG-S13F

Type: 5-lug conversion front hub (single)

Vehicle Fitment: Nissan 240SX S13 (1989-1994)

Position: Front

Quantity: Sold individually (2 required for complete front conversion)

Lug Pattern: 5x114.3

Stud Spec: M12 x 1.25

Bore: 66mm

Knurl: 14.35mm

Bearing: Pre-installed

Spindle Modifications Required: No

Compatible With: Slotted rotors and wheel spacers

Legality: Off-road and competition use only
