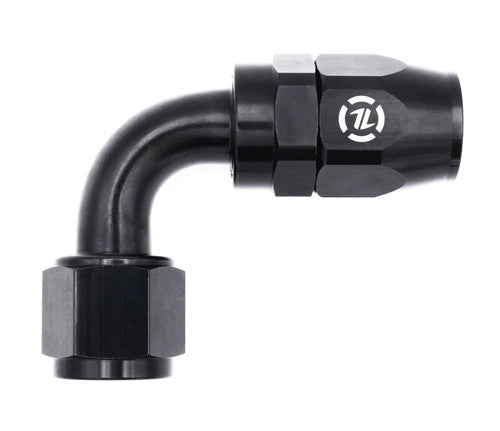

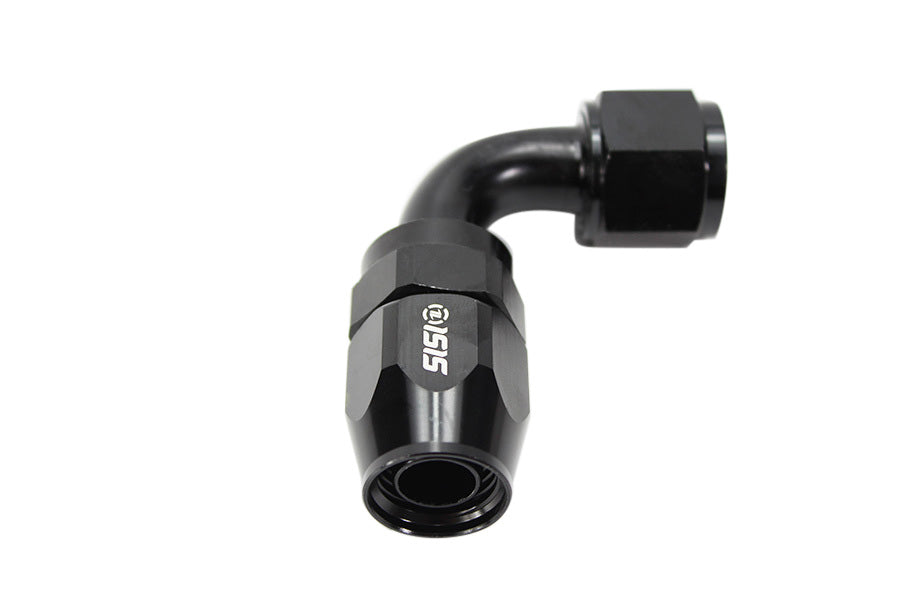

ISR Performance Hose End Fitting - 10AN 90 Degree

The ISR Performance Hose End Fitting is a -10AN 90 degree fitting in lightweight black anodized aluminum. The same fitting design used on ISR's turbo line kits for over five years, sold individually for custom plumbing builds, replacements, or one-off service needs.

What It Does

Hose end fittings are the threaded ends that crimp or screw onto braided AN hose to connect it to a port on an engine, turbo, oil cooler, fuel system, or any other component. -10AN is common for turbo oil feed and drain lines, larger oil cooler lines, and high-flow fuel systems on big builds.

90-degree fittings make tight right-angle bends, critical when a port is close to a wall, firewall, or other obstacle that prevents the hose from running straight. Without the 90, the hose has to bend tighter than it should, which restricts flow and shortens hose life.

Fitment

Universal -10AN fitting. Compatible with any -10AN braided AN hose using the standard ISR-style hose end design.

Sold Per Single Hose End

This listing is for ONE fitting. A typical hose has two ends, so plan to order at least two fittings (or pair with the matching straight/angled fittings) for any line you're building.

What's in the Box

• 1x ISR Performance -10AN 90 degree hose end fitting

Product Details

Brand: ISR Performance

Part Number: IS-10AN-90

Type: AN Hose End Fitting

Size: -10AN

Angle: 90 Degree

Material: Lightweight aluminum

Finish: Black anodized

Compatibility: Universal, fits standard -10AN braided AN hose

Sold: Individually (per single hose end)

Legality: Off-road and competition use only
