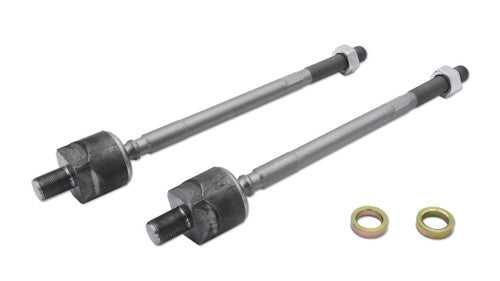

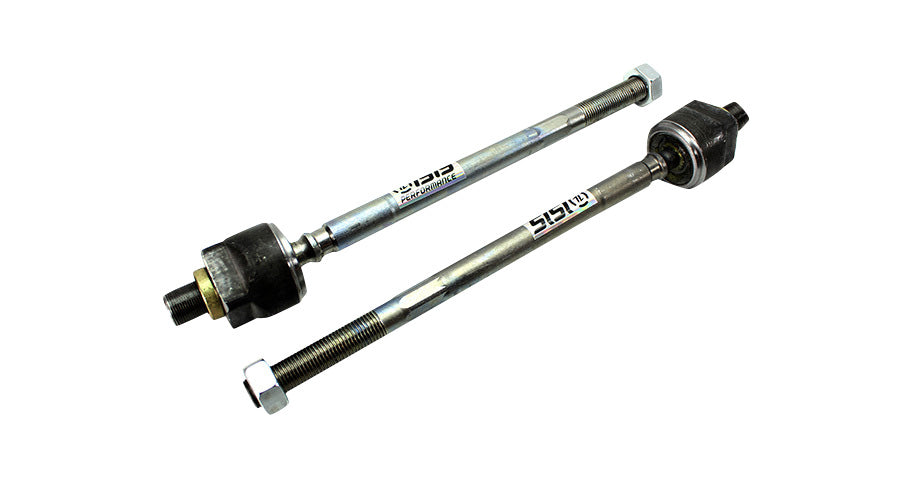

ISR Performance Inner Tie Rods - Nissan 240sx
ISR Performance Inner Tie Rods - Nissan 240sx
The ISR Performance Inner Tie Rods are strengthened replacement inner tie rods for the Nissan 240SX, designed to add steering angle at full lock and improve durability over the factory units. Longer... See more
The ISR Performance Inner Tie Rods are strengthened replacement inner tie rods for the Nissan 240SX, designed to add steering angle at full lock and improve durability over the factory units. Longer and thicker than the OEM tie rods, with an included rack spacer to extend the steering range.
What It Does
The factory 240SX inner tie rods limit steering wheel rotation, which caps the lock angle you can dial in even with an angle knuckle setup. The ISR inner tie rods are longer (10 9/16 inches vs OEM 10 1/4 inches) and thicker (0.550 inch vs OEM 0.475 inch), with an additional 1/4 inch slip-on rack spacer. The combined extra length plus spacer increases the steering rotation range, which translates to more usable lock for drift builds. The thicker cross section also handles the extra side loads from aggressive driving better than OEM.
Specifications
- OEM tie rod: 10 1/4 inches long, 0.475 inch thick
- ISR tie rod: 10 9/16 inches long, 0.550 inch thick
- Includes additional 1/4 inch slip-on rack spacer
S13 Owners: Outer Tie Rod Note
If you have an S13, you must pair these inner tie rods with S14 OEM or aftermarket outer tie rod ends. The ISR inner tie rods use the S14 thread spec on the outer end, so factory S13 outer ends will not thread on. S14 outer tie rod ends are inexpensive and widely available - plan to order them alongside this part if you're running an S13. S14 owners can use their factory outer tie rod ends directly.
Fitment
- 1989-1994 Nissan 240SX (S13) - requires S14 outer tie rod ends
- 1995-1998 Nissan 240SX (S14) - works with factory outer tie rod ends
What's in the Box
- 2x ISR Performance inner tie rods (driver and passenger)
- Included hardware (slip-on rack spacers)
Product Details
Brand: ISR Performance
Part Number: IS-ITR-240
Type: Strengthened Inner Tie Rods (Pair)
Vehicle Fitment: 1989-1998 Nissan 240SX (S13 and S14)
Length: 10 9/16 inch (vs OEM 10 1/4 inch)
Thickness: 0.550 inch (vs OEM 0.475 inch)
Includes: 1/4 inch slip-on rack spacer
Outer Tie Rod Requirement: S14 OEM or aftermarket outer tie rod ends (required for S13 installs - factory S13 outer ends will NOT fit)
Application: Drift builds, angle kits, anywhere extra steering rotation is needed
Sold: Pair (driver and passenger) with hardware
Legality: Off-road and competition use only
