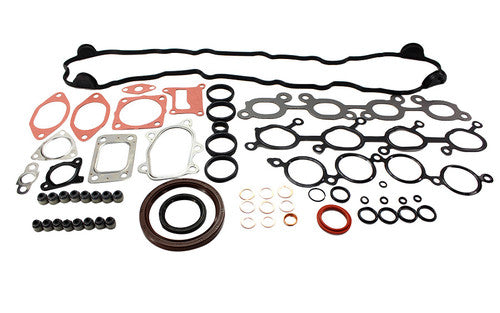

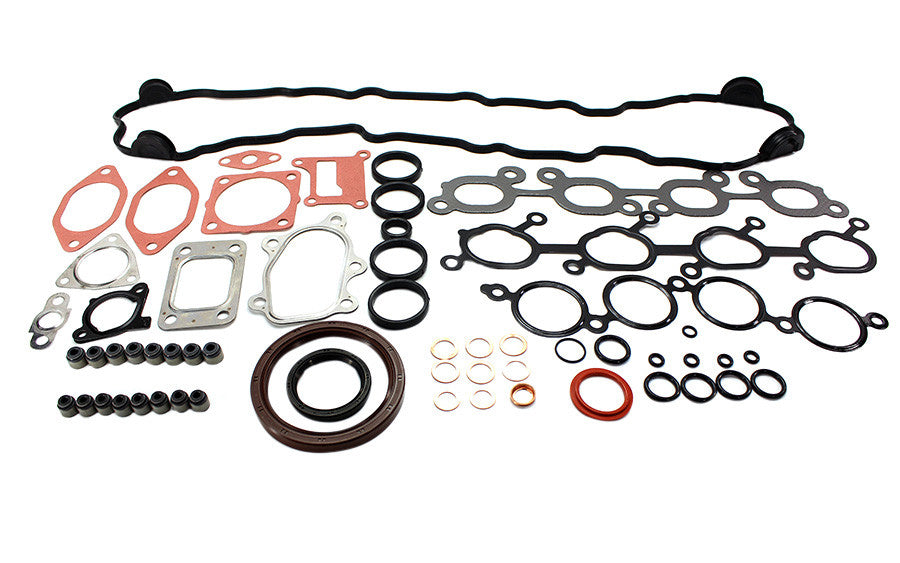

ISR Performance OE Replacement Engine Gasket Kit - Nissan SR20DET S13

The ISR Performance OE Replacement Engine Gasket Kit is a complete gasket and seal set for the 1989-1994 Nissan S13 SR20DET. Includes every gasket, seal, and O-ring needed for a full engine rebuild or top-end refresh, from main seals and valve cover gaskets through turbo flange gaskets and injector O-rings. Race-engineered for high horsepower and compression applications.

What It Does

An engine rebuild is no time to save five dollars on gaskets and end up with a leaking engine three months later. This kit covers every sealing surface on the S13 SR20DET in one purchase, so you're not chasing individual part numbers across multiple orders or finding out at 11pm that you forgot the oil pickup tube gasket. Everything is here, sized correctly for the S13 RWD SR20DET application, and built to handle the pressures and temperatures a built SR puts out.

Fitment

• 1989-1994 Nissan 240SX (S13) with SR20DET swap
• Designed for the RWD (rear-wheel-drive) SR20DET specifically

FWD SR20DET note: This kit is for the RWD SR20DET. Some gaskets are shared with the FWD SR20DET, but others (intake manifold orientation, exhaust manifold, valve cover) are not. Don't use this kit for an FWD SR rebuild.

What's in the Box

Cylinder Head and Block Seals:

• Rear main seal
• Front main seal
• Intake valve seals
• Exhaust valve seals
• Timing chain tensioner gasket

Intake and Valvetrain:

• S13 SR20DET valve cover gasket set
• S13 SR20DET intake collector gasket
• S13 SR20DET intake manifold gasket
• S13 SR20DET throttle body gasket
• S13 SR20DET idle air control valve (IACV) gasket

Exhaust and Turbo:

• S13/S14/S15 SR20DET exhaust manifold gasket
• SR20DET T25/T28 compressor outlet gasket (3-bolt)
• Turbine inlet gasket (4-bolt)
• SR20DET T25 turbine outlet gasket (5-bolt)
• SR20DET T25 turbo oil drain gasket

Oil System:

• Oil pick-up tube gasket
• Oil pump front cover O-ring
• Oil filler cap O-ring

Fuel and Sensor:

• Side feed injector O-ring pack (includes FPR O-rings)
• Cam angle sensor O-ring

Product Details

Brand: ISR Performance

Part Number: OE-10101-50F27

Type: Complete Engine Gasket and Seal Kit

Engine Fitment: Nissan SR20DET (S13, RWD)

Chassis Fitment: 1989-1994 Nissan 240SX (S13) with SR20DET

Drivetrain Restriction: RWD SR20DET only (not FWD SR variants)

Turbo Compatibility: T25 / T28 factory turbos

Injector Type: Side feed (factory S13 injector style)

Application: Full engine rebuild, top-end refresh, or major service

Sold: Complete kit

Legality: Off-road and competition use only
